PROJECTSMAD BAT
optimized for short-medium distances,
with robust payload versatility.
Aerodynamics based on new principles
like Adifo

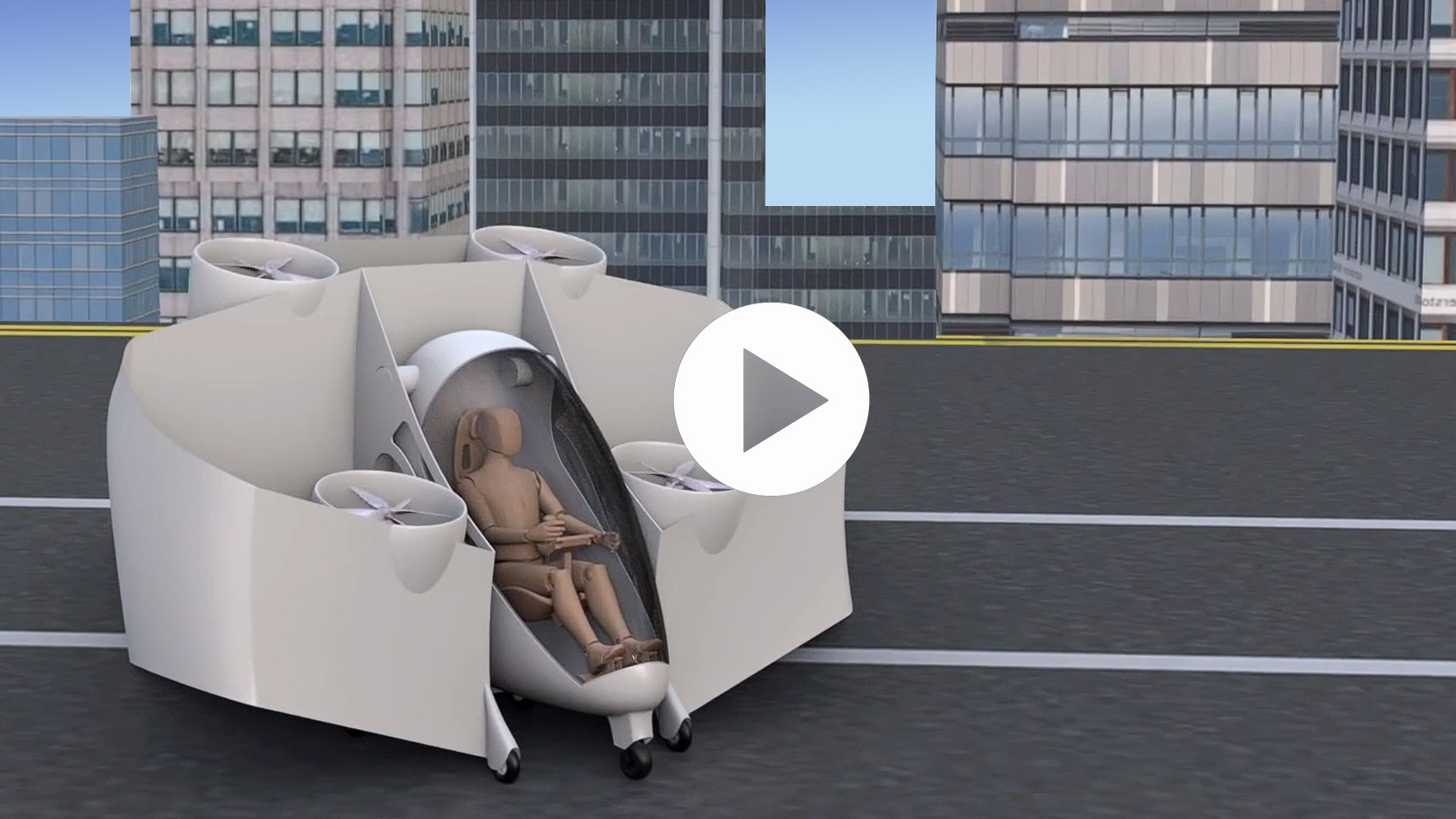

The Mad Bat is a VTOL tilt biplane based on new aerodynamic concepts like our previous aircraft – Adifo, but also on innovative units and propulsion systems.
The Mad Bat has a very fast transition from hovering to cruise flight, probably the fastest at this moment from quad to plane mode, because the inclination of the wings is natural and it’s depending on the flight speed.

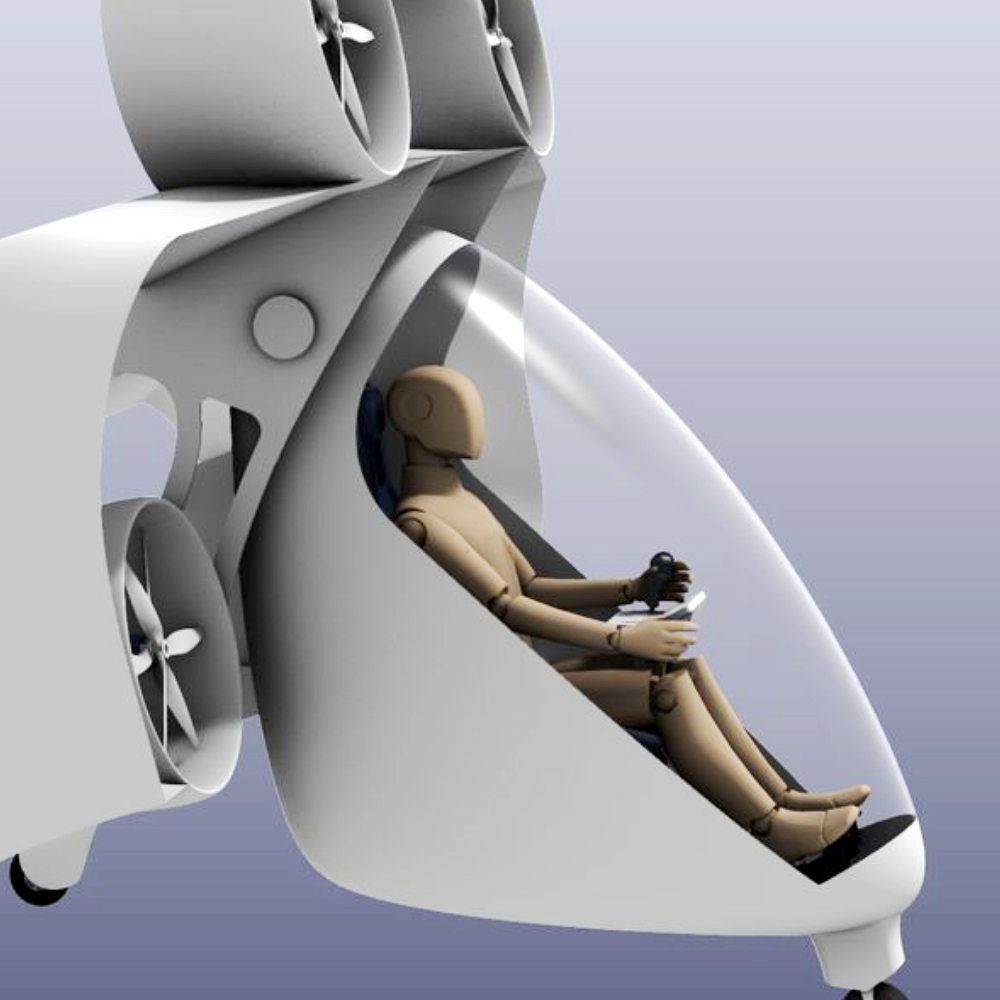

The cockpit stays naturally perpendicular on the ground regardless of the angle of attack of the wings, but the joint between the cockpit and the wings is controlled to prevent balances, but also to adjust the center of gravity according to the flight regime.
Using the same innovative aerodynamic principles as Adifo, the airfoil allows very large angles of attack, the boundary layer remaining attached at angles that can exceed 60 degrees, much more than a classic profile. This leads to a huge energy saving, because the effect given by the wings contributes massively to keeping the device in the air from very low speeds.
The Mad Bat is a VTOL that can take off and land vertically using the landing gear built into the wings, but it can also land and take off like a classic plane using the cockpit’s landing gear.
Key Features:
- High-lift airfoil:
Very high AoA without stall.
_______________________________________ - VTOL/Near-VTOL capability:
Superfast transition from hovering to cruise speed; vertical takeoff and landing enhances deployment in confined or urban spaces.
_______________________________________ - Efficient engine use:
Same engines for takeoff and landing, no deadweight.
_______________________________________ - Speed advantage:
Operates at 40-170 km/h, faster than classical multicopter drones; combines fixed-wing and multicopter benefits.
_______________________________________ - Versatile and fuel-efficient:
Huge energy savings and modular design for mission-specific requirements.
- Payload adaptability:
Supports robust payloads, including cameras, tactical equipment, mini rockets, recoilless weapons, kamikaze drones, and loitering ammunition for military applications, but also for civilian needs.
_______________________________________ - Scalable design:
Usable for applications ranging from pretty small drones to passenger transport.
_______________________________________ - Compact and eco-friendly:
Low noise, low pollution, and easy to fly.
High range and payload capacity: Long range with significant load capability.
_______________________________________ - Cost-effective:
Lower manufacturing cost and cheap maintenance.
_______________________________________ - Sustainability:
Possibility to hover by adding the wind energy.
_______________________________________ - High safety:
Reliable performance with versatile capabilities.
Civilian
Applications:
- Agriculture:
– Precision spraying of fertilizers.
– Crop monitoring using thermal or multispectral cameras.
___________________________________________
- Sub-urban/Urban Delivery:
– Transport of lightweight packages (e.g., medical supplies) within sub-urban/urban areas. Logistic deliveries.
-Search and Rescue: Deployment in confined spaces to search and rescue missions.
___________________________________________
The Mad-Bat outpaces its competitors in speed and range, making it the ideal solution for demanding VTOL missions.
Its version with hybrid propulsion system enables extended ranges beyond 100 km, while its high payload capacity supports versatile applications, including agriculture, urgent deliveries, and search-and-rescue operations.
Military
Applications:
- ISR/ISTAR Missions:
Compact size and VTOL capability make it ideal for tactical missions in dense urban/sub-urban or forested areas
___________________________________________ - Tactical Support:
Delivery of lightweight tactical equipment to support ground troops.
___________________________________________ - Force Multiplier:
– Total tactical dominance from a safe distance
– Carrier for precision X Fighter drones and/or mini missiles for advanced versatility, operational flexibility, and an extended operational range.
– Precision ground attack from safe distances, communication relay, anti-drone and anti-helicopter platform.
___________________________________________
The Mad-Bat dominates in military scenarios, ranging from tactical ISR/ISTAR to ground/air attack missions. Its hybrid range and VTOL capability make it a force multiplier for operations in diverse environments.
Additionally, its adaptability allows it to serve as an effective anti-drone and anti-helicopter platform, enhancing battlefield versatility.
